      ProX DMP 320
      ProX DMP 320 ProX DMP 320 易于扩展以胜任大批量部件生产。中央服务器管理打印作业、材料、设置及维护工作,实现出色的全天候生产力。包括冷却和粉末回收系统
      ProX DMP 320
      • 详情说明
      • 规格
      • 材料
      • 优点
      • ProX DMP 320

        ProX DMP 320 易于扩展以胜任大批量部件生产。中央服务器管理打印作业、材料、设置及维护工作,实现出色的全天候生产力。包括冷却和粉末回收系统在内的共享资源大大提升效率。

         3D Systems 的即用型材料所设定的打印参数种类繁多,助您获得高品质的部件和良好的机械属性。

        ProX DMP 320 提供的可转换制造模块,可在选定的打印机配置下,实现材料的快速转换或补充。

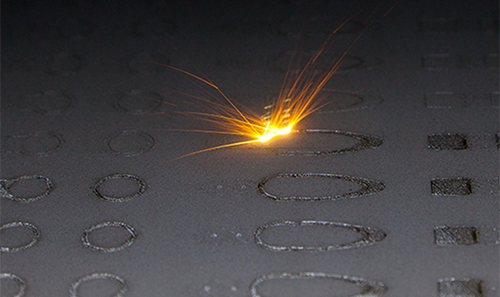

        3D Systems 直接金属打印工艺采用激光束逐层熔融金属粉末,根据 3D CAD 数据构造致密且化学纯度高的复杂金属零部件,从而缔造行业领先零部件品质、精密细节、高精确度和可重复性。

        全球性产品支持服务团队的丰富经验将令您受益匪浅,我们将安排专业服务和应用工程师,可在全球各个生产地满足您严格的质量要求。

      • Direct Metal Printers Trifold          English         100-200-300-320dmp_brochure_0216_a5_us_zhcn_web
      • LaserForm Ni718
        LaserForm? Ni718 is oxidation and corrosion-resistant material well suited for service in extreme environments subjected to pressure and heat. When heated, it forms a thick, stable, passivating oxide layer protecting the surface from further attack. It retains strength over a wide temperature range, attractive for high temperature applications where aluminum and steel would succumb to creep as a result of thermally induced crystal vacancies. In addition, LaserForm? Ni718 features a gamma double prime strengthened with good weldability. Typical applications are components for liquid fueled rockets, rings, casings and various formed sheet metal parts for aircraft and land-based gas turbine engines, and cryogenic tankage. It is also used for fasteners and instrumentation parts.
        LASERFORM STAINLESS 316L
        Austenitic stainless steel type 316L is the extra low carbon grade of 316, generally used because the parts can be machined, spark-eroded, welded, shot-peened, polished and coated if required. Typical applications include engineering for functional prototypes and small to medium series, parts requiring high corrosion resistance and sterilisability, pharmaceutical, food, chemical and process industry parts, and medical tools.
        LaserForm Ti Gr. 1
        Titanium grade 1 is the purest Ti grade which is known for its’ excellent biocompatibility and low stiffness. Therefore, it is perfectly suited for medical applications and implants. Featuring light weight with extreme temperature and corrosion resistance, and high ductility also make it ideal for motorsports, marine, premium sporting goods, aerospace and aviation applications.
        LaserForm Ti Gr. 23
        This titanium alloy is a commonly used alloy in technical and medical applications because of its high strength, low weight and its excellent biocompatibility. The essential difference between Ti6Al4V ELI (grade 23) and Ti6Al4V (grade 5) is the allowed higher oxygen and iron content in grade 5. This confers improved strength. Typical applications are light-weight & high-strength, medical implants, medical tools and devices and dental prostheses.
        LASERFORM TI GR. 5
        This titanium alloy is a commonly used alloy in technical and medical applications because of its high strength, low weight and its excellent biocompatibility. The essential difference between Ti6Al4V ELI (grade 23) and Ti6Al4V (grade 5) is the allowed higher oxygen and iron content in grade 5. This confers improved strength. Typical applications are light-weight & high-strength, medical implants, medical tools and devices and dental prostheses.
      • 高精度,高吞吐量
        ProX DMP 320 在近五十万次打印结果的基础上开发研制,可在高需求的全天候生产环境中实现快速建模交付。

        生产准备就绪
        专用于通过快速交换式建模模块与高速粉末回收功能提高生产力。

        低运营成本
        高效的消耗品管理和共享辅助设备极大
        降低了总体拥有成本。

        增强机械属性
        建模过程中浓度最低的 O2(百万分之25)水平实现了高化学纯度的性能极其强大的部件。

        经大量测试的可靠材料
        经过数千小时的参数优化,确保打印结果具有可预测性与可重复性。

        应用广泛
        ProX DMP 320 的打印流程精简稳定,几乎可以打印任何几何形状,还可避免试错操作步骤。
